Floating Ball Design Flanged Ball Valve , CF8 Body RPTFE Seated 2 Inch Ball Valve For WOG

Floating Ball Design Flanged Ball Valve , CF8 Body RPTFE Seated 2 Inch Ball Valve For WOG
Floating Ball Design Flanged Ball Valve , CF8 Body RPTFE Seated 2 Inch Ball Valve For WOG

Large Image :  Floating Ball Design Flanged Ball Valve , CF8 Body RPTFE Seated 2 Inch Ball Valve For WOG

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Q41F
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Detailed Product Description
Port Size: 2"~24" Design: Floating Ball
Driven By: Lever, Pneumatic, Electric, Hydraulic Structure: Two Piees, Three Piecs
Bore Hole: Reduced Bore, Full Bore Working Temperature: -25~-180℃
High Light:

ss ball valve flange type

,

flanged end ball valve

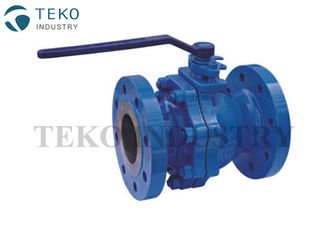

Floating Ball Design CF8 Body RPTFE Seated Flanged Ball Valve For WOG Applications





Our floating ball valves are manufactured according to the API 6D standard and in our own API 6D certified facility. The valve body components are cast in TEKO's own casting factory.



The Fusion floating ball valves are economically priced and designed to last. These valves provide exceptional performance in even the most stringent applications found in the Oil & Gas industry and other industries.



TEKO offers standard carbon steel (WCB & LCC) & stainless steel body and trim materials and a variety of optional materials. Standard seat materials is PTFE.. A wide variety of optional seat and seal materials are available for your options.





Features:

  • Split Body – Full & Reduced Bore
  • Anti-Blow Out Stem
  • Anti-Static Device
  • Firesafe to API-607/6FA
  • Zero Emissions from Stem
  • NACE MR-01-7





Material Parts



Floating Ball Design Flanged Ball Valve , CF8 Body RPTFE Seated 2 Inch Ball Valve For WOG 0



Item part material
1 Body ASTM A351 CF8M ASTM A351 CF8 ASTM A216 WCB
2 Cap ASTM A351 CF8M ASTM A351 CF8 ASTM A216 WCB
3 Ball ASTM A351 CF8M ASTM A351 CF8 ASTM A216 WCB
4 Seat PTFE PTFE PTFE
5 Stem ANSI 316 ANSI 304 ANSI 304
6 Thrust washer PTFE PTFE PTFE
7 Packing PTFE PTFE PTFE
8 Gland Nut ANSI 304 ANSI 304 ANSI 304
9 Handle ANSI 430 ANSI 430 ANSI 430
10 Washer ANSI 301 ANSI 301 ANSI 301
11 Nut ANSI 304 ANSI 304 ANSI 304
