Tight Shut Off Electric Pinch Valve Ductile Iron Body Multifunctional For Ore Mine

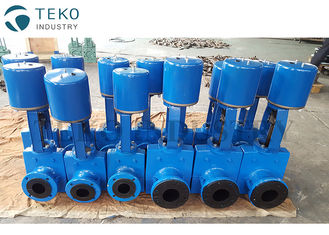

Large Image : Tight Shut Off Electric Pinch Valve Ductile Iron Body Multifunctional For Ore Mine

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	GJ941X

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	25 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs per month

Contact Now

Detailed Product Description

Applications:	Most Abrasion Resistant Service	Port Size:	DN15 To DN700
Drived By:	Electric Actuated	Body Material:	Carbon Steel, Aluminum, Cast Iron
Sleeve Pressure:	≤10 Bar	Opening Tag:	Yes
High Light:	air actuated pinch valve , manual pinch valve

Tight Shut Off Ductile Iron Body Electric Actuated Slurry Pinch Valve For Ore Mine

Description

TEKO electric actuated pinch valve is ideal control valve engineered with the highest quality standards. It is made specially for slurry of high pressure, abrasion, corrosion and aggressive. Our pinch valve offers substantial savings through improved performance, long service lifetime and low maintenance costs with pressure capabilities up to 10 bar.

Feature

Full bore
100% tight shutoff
Rubber sleeve the only part in contact with medium
Cord fiber enhanced sleeve for good flexibility
Long lifttime
Opening tag for negative pressure or

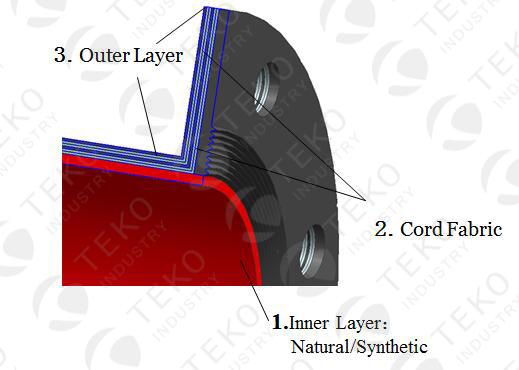

Sleeve Structure

Tight Shut Off Electric Pinch Valve Ductile Iron Body Multifunctional For Ore Mine 0

1. Inner Layer: Natural rubber/Synthetic Rubber

The inner layer is the key part of the pinch vale which contacts the medium. It is decided by the working conditions.

2. Cord fabric: to improve the pressure retraining capabilities, make sure that the sleeve work well during operation. Layer quantity depends on the working pressure and vale size.

3. Outer layer: to protect the sleeve from the environmental corrosion, with features of high elasticity, tear-resistance and high fatigue-resistance
