Conventional Port Forged Steel Gate Valve Handwheel Operation For Petrochemical Industry

Conventional Port Forged Steel Gate Valve Handwheel Operation For Petrochemical Industry
Conventional Port Forged Steel Gate Valve Handwheel Operation For Petrochemical Industry

Large Image :  Conventional Port Forged Steel Gate Valve Handwheel Operation For Petrochemical Industry

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Z61Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Detailed Product Description
Size: 1/8" To 2" Feature: Gate
Port: Standard Port, Full Port Material: A105, F304,F316
End Conection: Flange,Weld Operatioin: Handwheel, Electric
High Light:

forged steel globe valve

,

forged steel check valve

Conventional Port Forged Steel Gate Valve Handwheel Operation For Petrochemical Industry





Overview


TEKO Industrial Forged Steel Valve, designed per API602, Sizing 3/8” to 2”, Rating 800Lb~1500Lb, With SW and thread end connection




Specificatons



Features
  • Rigid and sturdy design
  • Long service life with leak tightness
  • Back seating surfaces provided integral to bonnet
Applications
  • Refineries and Petrochemical Industries
  • Fertilizer Plant
  • Themal Power Plant
  • Other Process Industries
Specifications
  • Manufactured Standard: API 602/ BSEN 15761 (BS: 5352)
  • Size Range: 3/8" to 2"
  • Pressure Rating: Class 800
  • End Connections: Socket weld, Screwed End

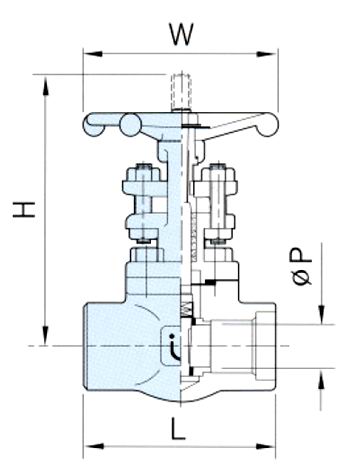

Dimensions

Conventional Port Forged Steel Gate Valve Handwheel Operation For Petrochemical Industry 0



Class Standard Port 1/4 3/8 1/2 3/4 1 1-1/2 2
Full Port   1/4 3/8 1/2 3/4 1 1-1/2 2
800 L 76 76 76 92 104 115 146 170
W 85 85 85 97 97 137 157 157
H 138 138 138 147 174 217 261 303
P 6.4 9.6 9.6 12.7 18.0 28.6 37.5 465
Wt(kg) 1.5 1.5 1.5 2.1 2.8 4.8 8.2 13.0
1500 L 92 92 92 104 115 146 210
W 97 97 97 97 37 157 157
H 147 147 147 156 207 246 303
P 6.4 9.6 9.6 12.7 18.0 28.6 37.5
Wt(kg) 2.2 2.2 2.1 2.9 5.0 8.2 11.9
