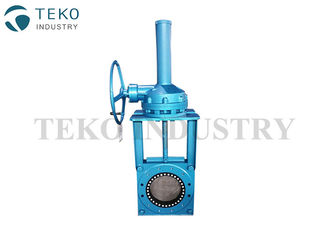

Highly Abrasion Resistant Knife Valve Natural Rubber Material Seat For Slurry

Highly Abrasion Resistant Knife Valve Natural Rubber Material Seat For Slurry
Highly Abrasion Resistant Knife Valve Natural Rubber Material Seat For Slurry

Large Image :  Highly Abrasion Resistant Knife Valve Natural Rubber Material Seat For Slurry

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: PZ73H
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Detailed Product Description
Manufactuer Standard: Mill Standard Wafer End: ANSI B16.5
Seal Type: Natural Rubber Seat: Natural Rubber With Fiber Cord
Port Size: 2"-24" Treatment: Painting
High Light:

4 inch knife valve

,

cast steel valves

Highly Abrasion Resistant Natural Rubber Seat Knife Valve For Slurry Services



TEKO Slurry Knife Valve is specially design for highly demanding erosive, abrasive, and corrosive slurry applications, such as mining, Power Plants, Sand and gravel, chemical etc. These are processes where wear is in general critical. The Slurry Knife Gate Valve is On/Off Type, Bidirectional seal, full bore and mono-block body. These features ensure the highest standard of product quality.





Specifications



Size: DN50-DN700
Pressure rating: PN 1.0 or PN1.6 Mpa
Sleeve material: Natural rubber(Optional)
Temperature range: -30℃~90℃
Max. Temperature: 150℃ For special sleeve





Applications



Minerals & Mining Cement and fiber Cement Fossil and biofuels Water and Waste water
Fertilizers Pulp and Paper Pigment and fillers Sand and Gravel





On-site using:





Highly Abrasion Resistant Knife Valve Natural Rubber Material Seat For Slurry 0
