End Connection: RF Or BW Bonnet Type: Bolted Bonnet
Stem Material: SS410 Size: 2"-24"
Presssure: 150LB-1500Lb Face To Face: ASME B 16.34

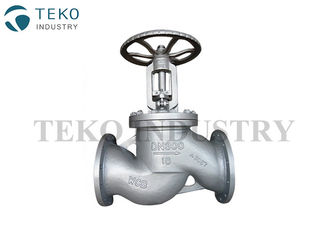

WCB Material Flange End Bolted Bonnet Low Pressure BS1873 Globe Valve





Operator Options



• Gear Operated recommended for size 10” above

• Bolted Bonnet

• Outside Screw and Yoke

• Yoke integral with bonnet

• Rising Stem - Handwheel

• Welded or Threaded Seat Ring -Stellited

• Raised Face Flanged Ends or

Butt Weld Ends

Other End connections are available on request.





Applicable Standards



Design : ANSI B16.34

End Flange : ANSI B16.5

Weld Ends : ANSI B16.25

Face-to-Face : ANSI B16.10

Shell and Seat Test : API 598 MATERIAL

Option available for materials to meet NACE MR0175 requirement.





Dimensions



Class 300Lb

Dimensional Data (mm)
ø of Bolt Circle O.D. of RF g Thk of Flange t Ht. of RF f ø of Bolt Holes n-h ø of Handwheel Height Wall Thk a min Wt (Kg)
C O H
127 92.1 22.7 2 8-19.1 200 384 9.7 31
149.4 104.6 25.9 2 8-22.5 250 412 11.2 40
168.3 127 29 2 8-22.4 300 438 11.9 58
200 157.2 32.2 2 8-22.4 350 556 12.7 86
269.9 215.9 37 2 12-22.4 450 632 16 150
330.2 269.9 41.7 2 12-25.4 450 1002 17.5 397
387.4 323.8 48.1 2 16-28.6 560 1078 19.1 527
450.8 381 51.3 2 16-32.0 650 1100 20.7 608

* Please note dimensions are for information only. Order specific arrangement drawing dimensions will be final.





Material



WCB Material BS 1873 Globe Valve , Flange End Low Pressure Bolted Bonnet Globe Valve



No. Part Name Material ASTM Specification
1 Body Carbon Steel ASTM A216 Gr. WCB
2 Body Seat Ring Carbon Steel ASTM A105 ST’L No.6 Face
3 Disc Carbon Steel ASTM A105 13Cr Face
4 Disc Thrust Plate Stainless Steel A276 410
5 Disc Nut Stainless Steel A276 410
6 Stem Stainless Steel ASTM A182 F6a
7 Bonnet Bolt Carbon Steel ASTM A193 B7
8 Bonnet Nut Carbon Steel ASTM A194 2H
9 Gasket Stainless Steel Spiral Wound 316 + Graphite
10 Back Seat Ring Stainless Steel A276 410
11 Packing Ring Graphite Die Formed/Braided Graphite
12 Bonnet Carbon Steel ASTM A216 Gr. WCB
13 Hinge Pin Carbon Steel Carbon Steel
14 Packing Gland Stainless Steel ASTM A276 410
15 Gland Flange Carbon Steel ASTM A216 WCB
16 Gland Bolt Carbon Steel ASTM A193 B7
17 Gland Nut Carbon Steel ASTM A194 2H
18 Yoke Bush Ductile Iron ASTM A439 D2
19 Handwheel Malleable Iron Malleable Iron
20 Handwheel Nut Carbon Steel Carbon Steel
21 Washer Carbon Steel Carbon Steel
22 Nameplate Stainless Steel ASTM A182 F316
