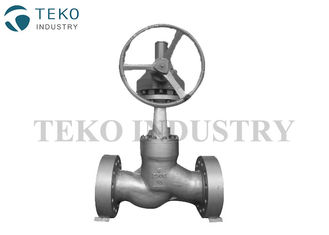

Pressure Seal BW End Flanged End BS1873 Globe Valve For High Temperature High Pressure Conditions



2-24" Pressure Seal Bonnet Butt Weld Ends Cast Carbon, Stainless or Alloy Steel Materials Available in all trim configurations Other sizes available on request

1500# Pressure Seal Globe Valve Design Features:

• Standard trim is stellite faced seat and disc seat surfaces, and 13% chrome stem (API trim 5). Other trims available on request.

• 1500# pressure seal globe valves are full port design per ASME B16.34 Table A-1.

• Wall thickness per heavy wall API 600 requirements.

• Seat faces lapped for smooth finish and superior sealing.

• Swivel disc for optimal seating and longer seat life.

• Each 1500# pressure seal globe valve is shell, seat and backseat pressure tested per industry standard API 598.

• Gland is two piece gland / gland flange design for optimal alignment and uniform packing compression.





PRESSURE SEAL GATE VALVES STANDARDS COMPLIANCE

  1. Design and Manufacture: AMSI B16.34,API600 API6D,BS1414
  2. Face to face(end to end):ANSI B16.10,API6D
  3. Flanged connection: ANSI B16.5
  4. Butt welded end: ANSI B16.25
  5. Test and inspection: API598, API6D
  6. Back up ring: Absorbs thrust applied by internal pressure
  7. Thrust ring: Protects the soft metallic gasket from deformation
  8. Gasket: Unique angular design provides superior sealing



Material List



NO. Part name Material
23 Grease nipple Brass
22 Grub screw Carbon steel
21 Hand wheel nut Carbon steel
20 Hand wheel Malleable iron/cast steel/dycuke iron/fabricated steel
19 Yoke nut Carbon steel/SS
18 Eye bolt and nut A 193 B7/A194 2H~A193 B8/A194 8
17 Pin Carbon steel/stainless steel
16 Stem Nut A 439-D2/cu-alloy
15 Gland flange
14 Gland Stain less steel
13 Gland bush See body material
12 Back seat
11 Stem
10 Seat ring
9 Wedge





Dimensions


Class 600
Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20 24
L-L1 mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L-SP mm 178 216 254 305 381 457 584 711 813 889 991 1092 1194 1397
H mm 525 610 650 775 825 1050 1200 1450 1600 1800 2050 2245 2400 2670
K mm 250 250 300 350 400 500 600 600 400~ 450~ 450~ 500~ 500~ 550~
Wt kg 35 55 62 105 160 205 400 690 815 1125 1650 2025 2325 3980
Class 900
Size inch 2 2-1/2 3 4 5 6 8 10 12 14 16 18 20
L-L1 mm 368 419 381 457 559 610 737 838 965 1029 1130 1219 1321
L-SP mm 216 254 305 356 432 508 660 787 914 991 1092 1219 1321
H mm 550 645 670 790 855 1075 1225 1500 1635 1830 2145 2300 2485
K mm 300 300 300 400 450 300~ 350~ 400~ 400~ 450~ 500~ 500~ 550~
Wt kg 75 90 96 136 225 275 490 825 1150 1500 2100 2750
