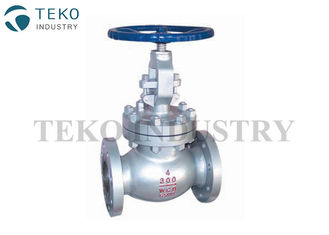

BS1873 Welding Seat Ring Carbon Steel Globe Valve With Hand Wheel Operation
Specification:
Design and manufacture: API 600 and BS1873
Face to Face Dimension: ASME B 16.10
Flange End: ASME B16.5;
B.W. End: ASME B16.25
Shell Wall Thickness: API600 BS 1873
Material List
No. | Parts Name | Material |
1 | Body | ASTM A216 Gr.WCB |
2 | Seat Ring | ASTM A105+13Cr |
3 | Disc | ASTM A105+13Cr |
4 | Stem | ASTM A182 F6a |
5 | Gasket | 304SS Jackted Graphite |
6 | Bonnet | ASTM A216 Gr.WCB |
7 | Stud | ASTM A193 Gr.B7 |
8 | Nut | ASTM A194 Gr.2H |
9 | Back Seat | ASTM A 276 410 |
10 | Packing | Graphite |
11 | Gland Bolt | ASTM A 193 Gr.B7 |
12 | Gland Nut | ASTM A194 Gr.2H |
13 | Bushing | ASTM A276 410 |
14 | Pin | C.S. |
15 | Gland | ASTm A 216 Gr.WCB |
16 | Stem Nut | Aluminum Bronze |
17 | Screw | C.S. |
18 | Handwheel | Malleable Iron |
19 | Washer | C.S. |
20 | Nut | C.S. |
21 | Disc Cover | ASTM A276 410 |
22 | Washer | S.S |
Note: Materials of Globe Valve Body: ASTM A216 WCB, A352LCB, A217WC1, WC6, WC9, C5, A351 CF8 CF8M CF3 CF3M etc.
Main Dimensions
DN | 150Lb RF Flange Dimensions(mm) | Weight | ||||||||
mm | in | L | D | D1 | D2 | b | n-φd | H | D0 | |
15 | 1/2 | 108 | 89 | 60.5 | 35 | 11.2 | 4-16 | 241 | 100 | 6.9 |
20 | 3/4 | 117 | 98 | 69.9 | 43 | 12.7 | 4-16 | 241 | 100 | 9.8 |
25 | 1 | 127 | 108 | 79.2 | 51 | 14.2 | 4-16 | 242 | 125 | 13.5 |
32 | 1-1/4 | 140 | 117 | 89 | 63 | 16 | 4-16 | 280 | 160 | 19.5 |
40 | 1-1/2 | 165 | 127 | 98.6 | 73 | 17.5 | 4-16 | 286 | 160 | 28.5 |
50 | 2 | 203 | 152 | 120.7 | 92 | 19 | 4-19 | 368 | 200 | 18 |
65 | 2-1/2 | 216 | 178 | 139.7 | 105 | 22.4 | 4-19 | 387 | 200 | 30 |
80 | 3 | 241 | 190 | 152.4 | 127 | 24 | 4-19 | 411 | 250 | 41 |
100 | 4 | 292 | 229 | 190.5 | 157 | 24 | 4-19 | 454 | 250 | 64 |
125 | 5 | 356 | 254 | 216 | 186 | 24 | 8-22.5 | 455 | 350 | 86 |
150 | 6 | 406 | 279 | 241.3 | 216 | 25.4 | 8-22.5 | 541 | 350 | 113 |
200 | 8 | 495 | 343 | 298.5 | 270 | 28.4 | 8-22.5 | 651 | 450 | 178 |
250 | 10 | 622 | 406 | 362 | 324 | 30.2 | 12-25.4 | 800 | 450 | 270 |
300 | 12 | 698 | 483 | 431.8 | 381 | 32 | 12-25.4 | 1231 | 600 | 350 |
350 | 14 | 787 | 533 | 476.3 | 413 | 35 | 12-29 | 1450 | 600 | 460 |
400 | 16 | 914 | 597 | 539.8 | 470 | 36.6 | 26-29 | 1645 | 600 | 590 |
