Electric Actuated / Motor Operated Gate Valve Hard Faced Pipeline With Simple Structure

Electric Actuated / Motor Operated Gate Valve Hard Faced Pipeline With Simple Structure
Electric Actuated / Motor Operated Gate Valve Hard Faced Pipeline With Simple Structure

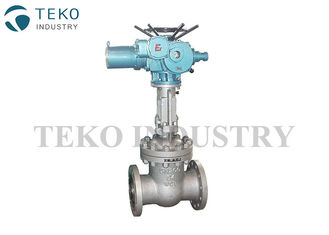

Large Image :  Electric Actuated / Motor Operated Gate Valve Hard Faced Pipeline With Simple Structure

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: Z941Y
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Detailed Product Description
Body Material: WCB/CF8/CF8M/CF3/CF3M Test Standard: API 598
Size Rating: NPS 2"-48" Applications: WOG Etc.
Operation: ON-OFF Electric Actuator Trim Number: Trim 1#/5#/8#/10# As API600
High Light:

electric actuated gate valve

,

motor operated gate valve

Electric Actuated / Motorized Hard Faced Pipeline Wedge Gate Valve With Export Standard





Quick Info:


Gate Valve, API600
Steel Valves, ASME B16.34
Face to face ASME B16.10
End Flanges ASME B16.5/ASME B16.47
Butt Welding ends ASME B16.25
Inspection and test API 598

Material: WCB
Pressure Rating: ASME CL, 150, 300, 600, 900, 1500, 2500
Temperature Range: -196°C~600°C



Features



Simple structure, easy operation
Streamline shape, excellent regulation performance

Zero leakage, long service life
Valve disc is connected with stem without pin

Replaceable seat, bi-directional seal





How to order the electric actuator?



Prior to order the actuator, we need the following info to choose the right model for your gate valve:



1) Determine the sizing criteria by the media factor and service factor
2) Determine the working voltage.
3) Determine the Working principle, mainly for ON-OFF automated or modulating type.
4) Determine the valve control method: Linear motion or rotary motion.
5) Determine the ex-proof class
6) Other special requirements.

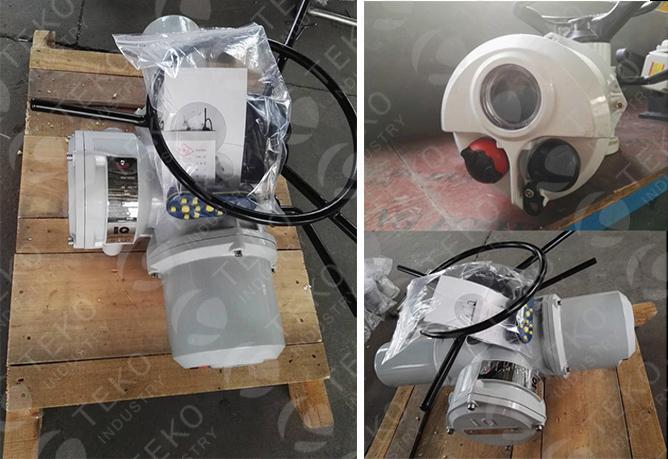

Electric Actuated / Motor Operated Gate Valve Hard Faced Pipeline With Simple Structure 0

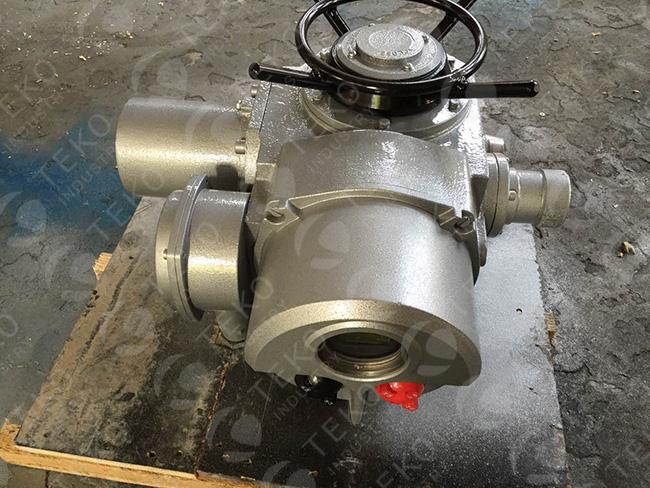

Electric Actuated / Motor Operated Gate Valve Hard Faced Pipeline With Simple Structure 1
